GENERAL INFORMATION
Product Code
NLW3/MD/830
Product Range
LOWLAND
Product Category
Downlights
Fixing Method
Recessed
IP Rating
65
IK Rating
Warranty
5 Years Core

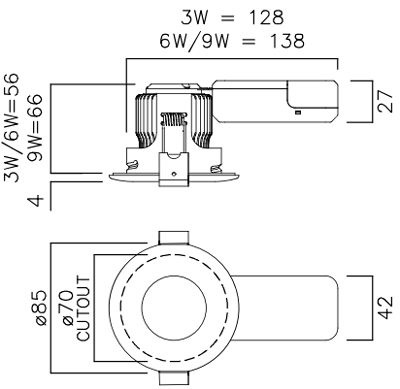

DIMENSIONS/WEIGHT
Dimensions
W: 0 - H: - DEPTH: 56 - DIAMETER: Ø85
Cut-out Size (mm)
Ø70
Product Weight (kg)
0.59
Construction
Body Material
Die Cast Aluminium
Body Colour
Grey
Optical Material
Optical Finish
Termination
3x2x1.5mm sq. Push In Terminal
Driver - Integral or Remote
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
Power Consumption (W)
3
Efficacy (l.lm/c.W)
81
Operating Temp. (Min/Max)
0°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L70 50000
SDCM
<5
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50
Inrush
Drivers per MCB *
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Loop In Loop Out
ELECTRICAL OUTPUT
Forward Current (mA)
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
Mains Dim
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5055943036116
E Number
S Number
