GENERAL INFORMATION
Product Code
NRE8-25/BK/827-30-40
Product Range
RENTON
Product Category
Amenity
Fixing Method
Surface
IP Rating
66
IK Rating
IK10
Warranty
7 Years Unlimited

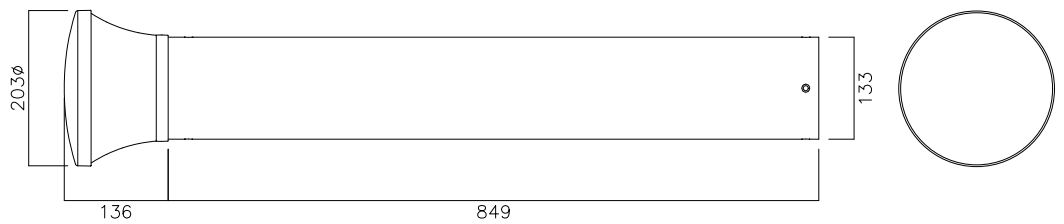

DIMENSIONS/WEIGHT
Dimensions
W: 0 - H: 985 - DEPTH: - DIAMETER: Ø133/203
Cut-out Size (mm)
0
Product Weight (kg)
6
Construction
Body Material
Aluminium
Body Colour
Black
Optical Material
Optical Finish
Termination
3-core flex
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
830 / 1315 / 2043 / 2725
Power Consumption (W)
8 / 12 / 19 / 25
Efficacy (l.lm/c.W)
111
Operating Temp. (Min/Max)
-30°C to 45°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
2700-3000-4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
Drivers per MCB *
B10=55 B16=88 C10=55 C16=88
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673234056
E Number
S Number
4544052
