GENERAL INFORMATION
Product Code
NMU8/830-40-60
Product Range
MAUI
Product Category
Downlights
Fixing Method
Recessed
IP Rating
44
IK Rating
Warranty
5 Years Core
DIMENSIONS/WEIGHT

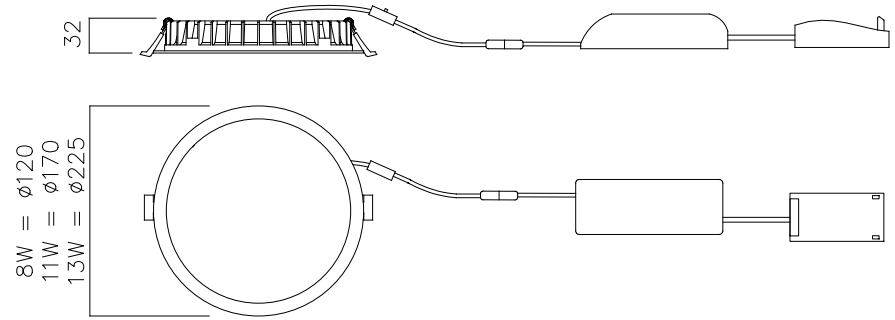

Dimensions
W: 0 - H: 0 - DEPTH: 32 - DIAMETER: Ø120
Cut-out Size (mm)
Ø108
Product Weight (kg)
0.29
Construction
Body Material
Die Cast Aluminium
Body Colour
White
Optical Material
PC
Optical Finish
Opal
Termination
3x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Remote
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
E
Luminaire Lumens (lm)
880
Power Consumption (W)
8.3
Efficacy (l.lm/c.W)
106
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
3000 / 4000 / 6000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L70 50000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50
Inrush
Drivers per MCB *
B10=50 B16=80 C10= 50 C16=80
Class
Class 2
Power Factor (PF)
>0.95
Cable Entry
Connector Block
ELECTRICAL OUTPUT
Forward Current (mA)
200mA
Forward Voltage (Vf)
32.6
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673236319
E Number
S Number
