GENERAL INFORMATION
Product Code
NGN2/6-12/827-40-60
Product Range

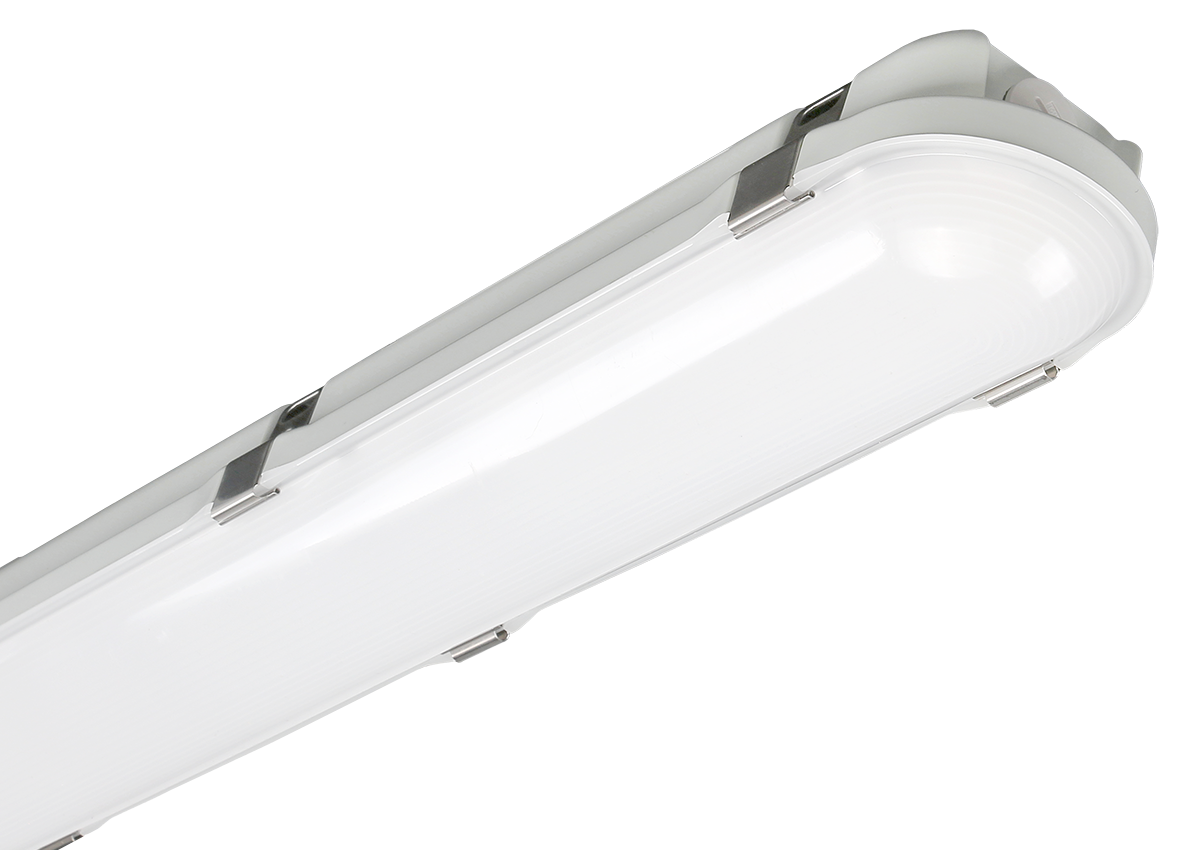

GREENLAND PRO
Product Category
Industrial
Fixing Method
Surface /Suspended
IP Rating
66
IK Rating
IK10
Warranty
7 Years

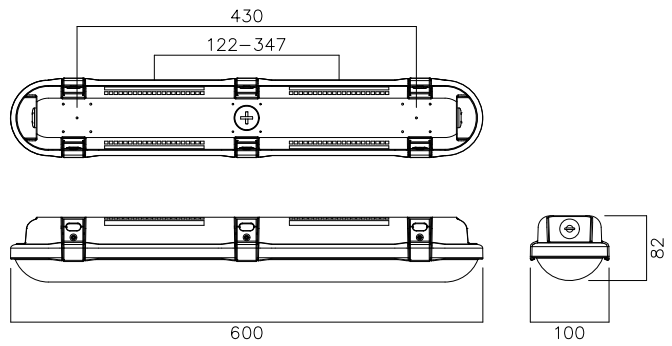

DIMENSIONS/WEIGHT
Dimensions
W: 100 - H: 82 - DEPTH: - DIAMETER:
Cut-out Size (mm)
Product Weight (kg)
0.92
Construction
Body Material
PC
Body Colour
Grey
Optical Material
Optical Finish
Termination
4x2x2.5mm sq. Push In Terminal
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
E
Luminaire Lumens (lm)
780 / 1040 / 1300 / 1560
Power Consumption (W)
6 / 8 / 10 / 12
Efficacy (l.lm/c.W)
Up to 130
Operating Temp. (Min/Max)
-20°C to 25°C 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
2700-4000-6000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
Drivers per MCB *
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Side / Back
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673236746
E Number
S Number
