GENERAL INFORMATION
Product Code
NED50/BK/PE1/740
Product Range

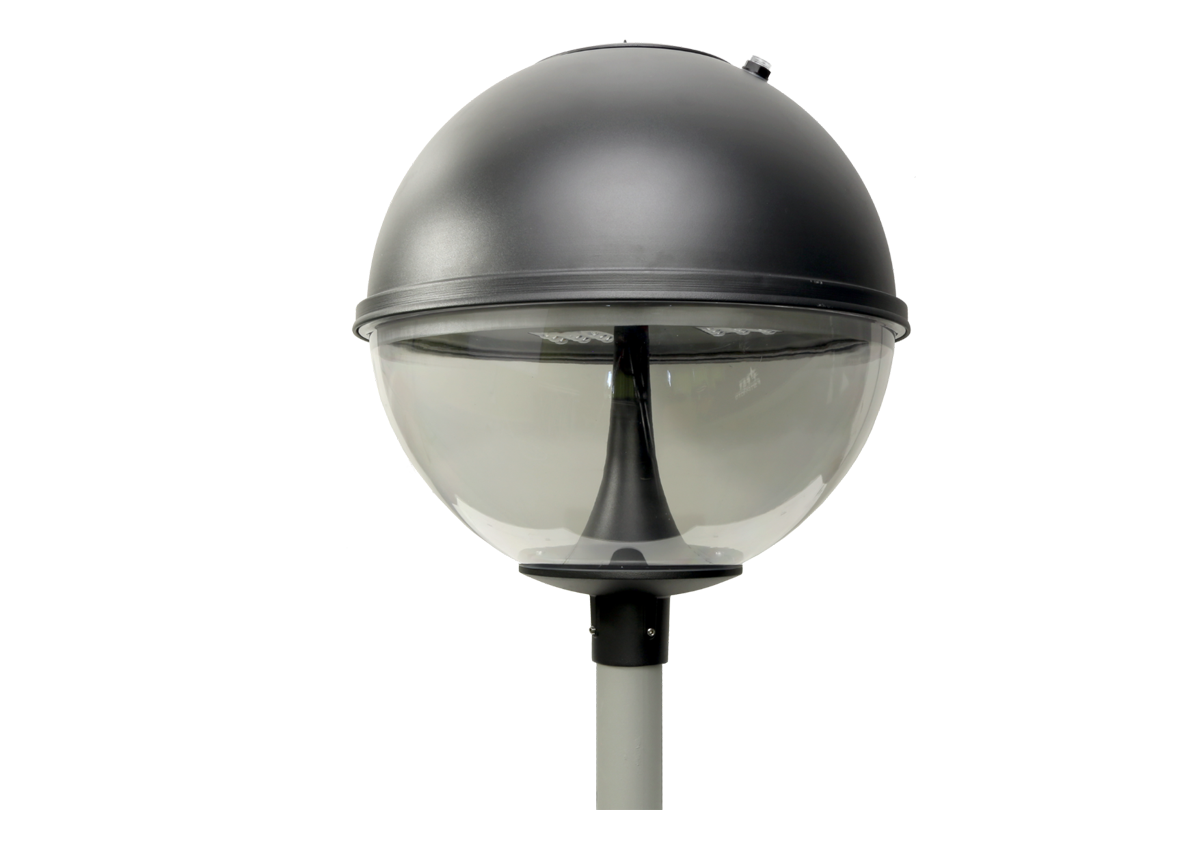

EDMONTON
Product Category
Street Lighting
Fixing Method
Post Top
IP Rating
65
IK Rating
08
Warranty
7 Years Unlimited
DIMENSIONS/WEIGHT
Dimensions
W: 0 - H: - DEPTH: 560 - DIAMETER: Ø507
Cut-out Size (mm)
Product Weight (kg)
10.1
Construction
Body Material
Aluminium/ Steel
Body Colour
Grey
Optical Material
Optical Finish
Termination
300mm HO5RN-F Flex
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
D
Luminaire Lumens (lm)
6700
Power Consumption (W)
50
Efficacy (l.lm/c.W)
126
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
4000
Colour Rendering Index (CRI)
>70
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
33A @ 236us
Drivers per MCB *
B10=4 B16=8 C10=8 C16=16
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
Yes
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5055943073555
E Number
S Number
