GENERAL INFORMATION
Product Code

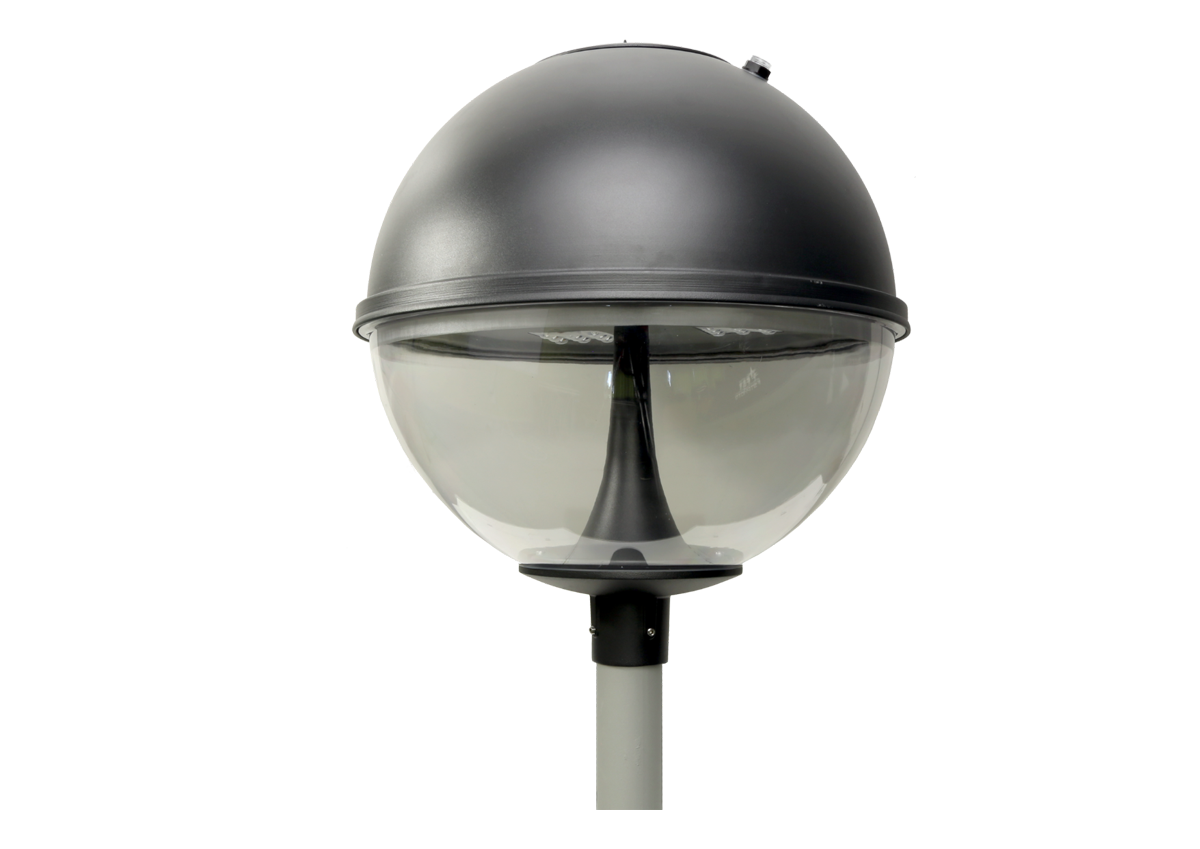

NED50/BK/740
Product Range
EDMONTON
Product Category
Street Lighting
Fixing Method
Post Top
IP Rating
65
IK Rating
08
Warranty
7 Years Unlimited
DIMENSIONS/WEIGHT
Dimensions
W: 0 - H: - DEPTH: 560 - DIAMETER: Ø507
Cut-out Size (mm)
Product Weight (kg)
10
Construction
Body Material
Aluminium/ Steel
Body Colour
Grey
Optical Material
Optical Finish
Termination
300mm HO5RN-F Flex
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)
LUMINAIRE PERFORMANCE
Energy Rating
D
Luminaire Lumens (lm)
6700
Power Consumption (W)
50
Efficacy (l.lm/c.W)
126
Operating Temp. (Min/Max)
-20°C to 25°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
4000
Colour Rendering Index (CRI)
>70
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
33A @ 236us
Drivers per MCB *
B10=4 B16=8 C10=8 C16=16
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
-
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5055943073531
E Number
S Number
