GENERAL INFORMATION
Product Code
NCM20-30-40/GRY/PE1/827-30-40
Product Range

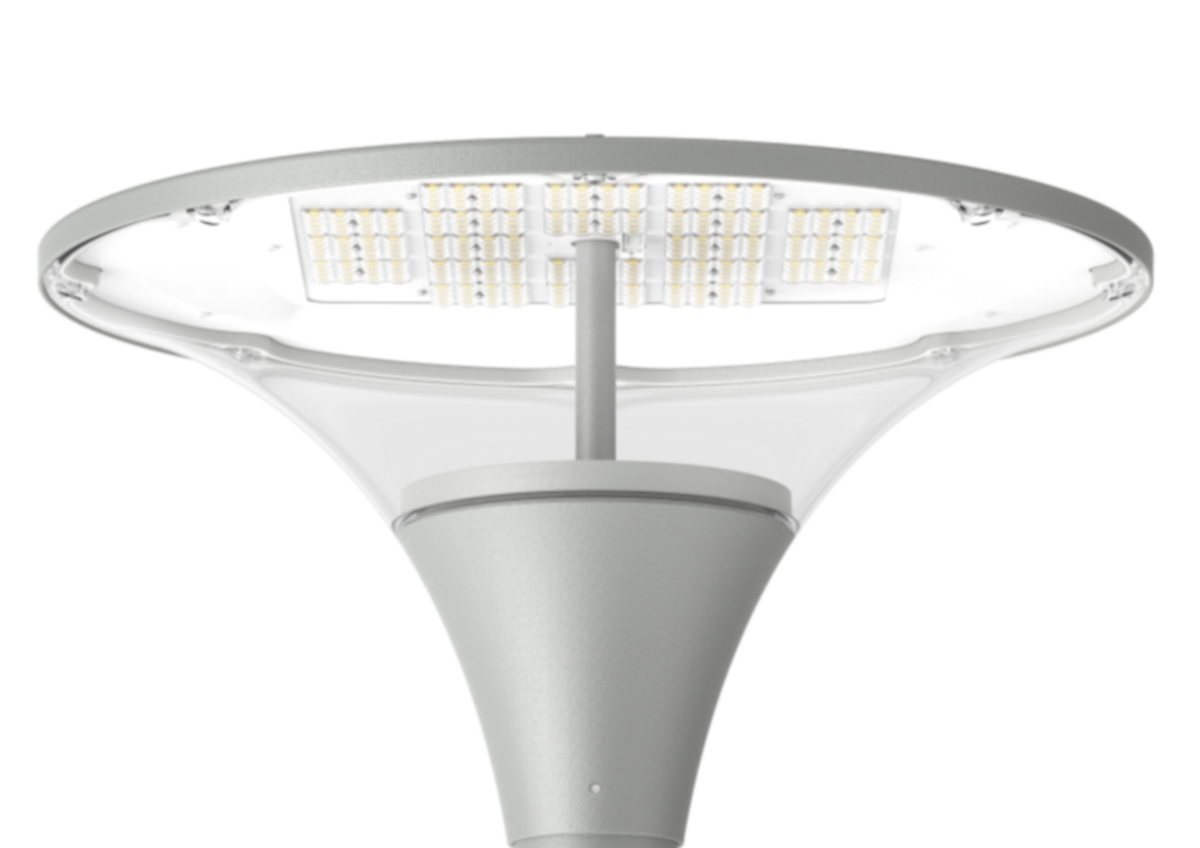

COLUMBIA
Product Category
Street Lighting
Fixing Method
Post Top
IP Rating
66
IK Rating
IK10
Warranty
7 Years Unlimited

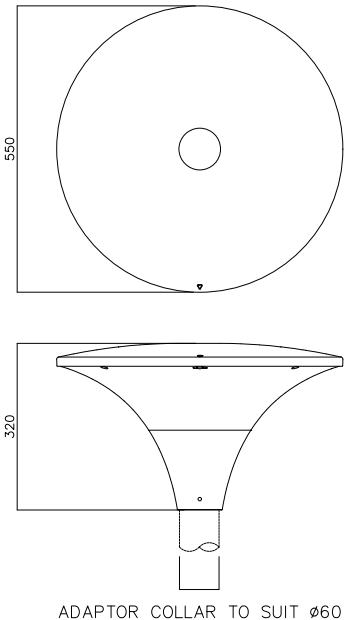

DIMENSIONS/WEIGHT
Dimensions
W: - H: 320 - DEPTH: - DIAMETER: 550
Cut-out Size (mm)
Product Weight (kg)
Construction
Body Material
Die Cast Aluminium
Body Colour
Grey
Optical Material
Optical Finish
Termination
6m LSOH 1.5mm3
Driver - Integral or Remote
Integral
PACKAGING
Carton Dimensions (mm)
Quantity per Outer Carton
Total Weight incl. Carton (Kg)

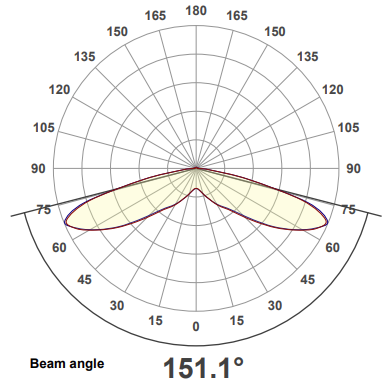

LUMINAIRE PERFORMANCE
Energy Rating
Luminaire Lumens (lm)
2626 / 4043 / 5192
Power Consumption (W)
20 / 30 / 40
Efficacy (l.lm/c.W)
132
Operating Temp. (Min/Max)
-30°C to 50°C
LIGHT SOURCE
Type
LED
Correlated Colour Temp.
2700-3000-4000
Colour Rendering Index (CRI)
>80
Lumen Depreciation
L80 100000
SDCM
<3
ELECTRICAL INPUT
Voltage (V)
220-240V AC
Operating Frequency (Hz)
50/60Hz
Inrush
Drivers per MCB *
B10=19 B16=31 C10=32 C16=51
Class
Class 1
Power Factor (PF)
>0.95
Cable Entry
Prewired
ELECTRICAL OUTPUT
Forward Current (mA)
Forward Voltage (Vf)
EMERGENCY DATA
Mode of Operation
Battery Duration
Battery Type
Battery Specification
Ballast Lumen Factor (BLF)
DIMMING
DALI
Switch Dim
Corridor Function
Other
SENSORS
Microwave
PIR
PEC
STANDARDS/APPROVALS
CE / Cert of Conformity
Yes / Yes
Accreditations
BARCODE / E No. / S No.
EAN Number
5056673236913
E Number
S Number
